DFSK Ruichi EC75 50.38kWh Fully Electric Vehicles 310km Range Small Cargo Van
Specification
| Item | EC75 EV VAN |
| EC75 Standard - Pioneer I | EC75 Standard-Transcend I | Long range - Pioneer type Ⅰ | Long range - Beyond type Ⅰ |
| Basic |
| Length*Width*Height (mm) | 5130×1860×2020 |
| Body structure | Load-bearing body |
| Exterior color | White,Silver,Blue |
| Interior color | Black/Grey |
| Wheelbase (mm) | 3200 |
| Front track(mm) | 1624 |
| Rear track(mm) | 1624 |
| Number of doors | 5 |
| Number of seats | 2 |
| Rear door opening form | Double-sided manual sliding doors |
| Tailgate opening form | 180° rear hinge door open |
| Cargo box size(mm) | 2830×1740×1400 |
| Cargo volume of cargo (m³) | 6.9 |
| Curb weight (kg) | 1730 | 1785 |
| Rated load weight (kg) | 1200 | 1145 |
| Power/Three Electrics |
| Type of energy | All electric |
| Motor type | Permanent magnet synchronous motor |
| Number of drive motors | 1 |
| Motor layout | horizontal |
| Total motor power(kw) | 70 |
| Total motor horsepower (Ps) | 95 |
| Total torque of electric motor(N.m) | 230 |
| Battery type | Lithium iron phosphate |
| Battery Capacity(KWh) | 41.5 | 50.38 |
| Cruising range (Km) (CLTC) | 252 | 310 |
| Battery heating function | ● |
| Fast charging | ● |
| Slow charging | ○(3.3KW) | ●(3.3KW) | ○(6.6KW) | ●(6.6KW) |
| Chassis steering |
| Drive mode | FWD |
| Front suspension type | MacPherson independent suspension |
| Rear suspension type | Longitudinal leaf spring non-independent suspension |
| Assist type | (EPS)electric power steering |
| Wheel brake |
| Front tire | 195/75 R16LT |
| Rear tire | 195/75 R16LT |
| spare wheel | ○ |
| Active/passive safety equipment |
| Tire pressure monitoring | ○ |
| Seat belt is not fastened | ● |
| Uphill assist | ● |
| ABS anti-lock braking | ● |
| Braking force distribution (EBD/CBC, etc.) | ● |
| Reversing radar | ● |
| Reversing video | — | ● | — | ● |
| Main driver's seat airbag | — | ● | — | ● |
| Driver Fatigue Monitoring System (DMS) | — | ● | — | ● |
| Electronic Stability Control (ESC) | — | ○ | — | ○ |
| Overweight warning | — | ○ | — | ○ |
| Internal configuration |
| Front/rear power windows | Front |
| Air conditioning | Electric |
| Gear shift form | Hold the block |
| Multi-function steering wheel | ● |
| The steering wheel is adjusted up and down | — | ● | — | ● |
| Seat configuration | |
| Seat material | fabric | Leather + fabric | fabric | Leather + fabric |
| The main driver's seat is adjusted | 4-way (front and rear + backrest adjustment) | 6-way (front and rear + up and down + backrest adjustment) | 4-way (front and rear + backrest adjustment) | 6-way (front and rear + up and down + backrest adjustment) |
| Passenger seat adjustment form | 2-ways (backrest adjustment) |
| Multimedia/intelligent |
| V2L | — | ○
(Optional slow charging) | ● |
| Number of speakers | 2 | 4 | 2 | 4 |
| 10.1-inch color screen for central control | — | ● | — | ● |
| Speech recognition | — | ● | — | ● |
| Wireless charging of your phone | — | ● | — | ● |
"●" - indicates that this configuration is available, "○" - indicates that this configuration is optional,
and "-" - indicates that there is no such configuration;
2024 Ruichi EC75 Small Cargo Vans Electric Feature
Extra-large space: 1.86m extra-wide body, 7m³ extra-large loading space, can hold 166 boxes of cooking oil.
Extra-large driving and riding space, easily meets the needs of people with a height of 1.88 meters
Extra-wide double-side sliding door opening width 1014mm + 180-degree flat tailgate, multi-directional loading and unloading
Smart and easy to control: 10.1-inch central control voice control large screen, mobile phone APP remote control
Core highlights
Endurance
With an ultra-long endurance of CLTC310km, the Ruichi EC75 long-endurance version is equipped with a 50.38KWh battery pack and a three-in-one on-board charging system in terms of the core three electrics. It can achieve 30%-80% power replenishment in 30 minutes, and has an 8-year 400,000-kilometer ultra-long warranty, reducing the cost of using the car.
Loading space
The new car has an ultra-large loading space of nearly 7m³, with a body of 1.86 meters and a cargo box size of 283017401400mm. It can hold 166 boxes of cooking oil. There are double-side sliding doors with an opening width of 1014mm on both sides, and the tailgate is a 180-degree split tailgate, which is convenient for loading and unloading.
Comfortable configuration
Equipped with a horizontal driving and resting cabin, it can meet the needs of drivers with a height of 1.88 meters to sit and rest easily.
Other configurations
Equipped with a 10.1-inch intelligent voice control screen, a dedicated freight platform APP and the first wireless charging in its class, as well as an APP remote control interconnection system, intelligent non-sensing start, and electronic hand gear + EPB electronic handbrake.
Safety configuration
Equipped with driver airbag, four-wheel safety disc brake, fatigue driving monitoring, overweight warning, dual battery anti-theft, etc.

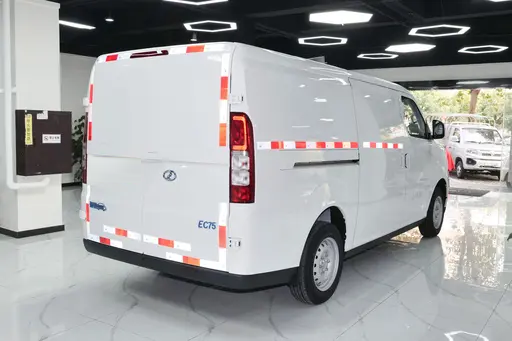

Ruichi EC75 Small Cargo Vans Real Picture
