DFSK EV Electric Trucks RuiChi EC31 243.67 Cu.Ft. Small Cargo Box Truck 60kw Motor

  • 1
  • 2
  • 3

Brand Name : DFSK

Model Number : EC31

Place of Origin : Chongqing, China

MOQ : 1 unit

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 70000 units per year

Delivery Time : 10-15 working days

Packaging Details : By Container

Product name : Ruichi EC31 Samll Cargo Box Truck

Size : 4710×1635×2460 mm

Cargo Size : 2770×1550×1610 mm

Van cargo volume : 243.67 Cu.ft.

Fuel Type : Electric

Max Speed : 80 km/h

Total motor power : 60 kw

Battery capacity : 38.64

Operating mileage (CLTC) : 275

Drive mode : RWD

Contact Now

DFSK Electric Trucks RuiChi EC31 243.67 Cu.ft. Small Cargo Box Truck





Specification



Ruichi EC31 Mini Truck



Item



 EC31 Box Cargo (Corrugated) EC31 Refrigeration

Basic



Size (mm)



 4710×1635×2460 4735×1635×2440

Body Type



 load-bearing body

Body





Length (mm)



 4710 4735

Width (mm)



 1635 1635

High (mm)



 2460 2440

Wheel tread (mm)



 3050

Front Wheelbase (mm)



 1410

Rear Wheelbase (mm)



 1410

Curb weight (kg)



 1425 1570

Door



 2

Seat



 2

Cargo Size (mm)



 2770×1550/1570×1610 2660×1450×1430

Van cargo volume (m³)



 6.9/7.0 5.5

Rated load mass (kg)



 1045 900

Max Speed (km/h)



 80

Approach angle (°)



 30

Departure angle (°)



 35

Power



Motor type



 Permanent magnet synchronous motor

Battery type



 Lithium Iron Phosphate

Total motor power (kw)



 60

Total motor torque



 220

Number of drive motors



 1

Motor layout



 Horizontal

Operating mileage (CLTC)



 275

Operating mileage (NEDC)



 /

Battery capacity



 38.64 kWh (AVIC Battery)

Battery heating function



 ●

Chassis steering



Drive mode



 RWD

Front suspension type



 MacPherson independent suspension

Rear suspension type



 Longitudinal leaf spring non-independent suspension

Assist type



 Electronic Assistance (EPS)

Body structure



 load-bearing body

Wheel brake



Front brake type



 Disc brakes

Rear brake type



 Drum brake

Parking brake type



 Mechanical

Front Rear tire specifications



 185R14LT 8PR

Active/passive safety equipment



Passive pedestrian protection device



 Seat belt

Seat belt not fastened reminder



 ●

ABS anti-lock



 ●

Braking force distribution (EBD/CBC, etc.)



 ●

External/anti-theft configuration



Central locking in car



 ●

Front/rear electric windows



 Front

Remote key



 ●

Multimedia configuration



Number of speakers



 2

Lighting configuration



Headlight



 Halogen

Headlight height adjustable



 ●

Seat configuration



Driver/Passenger seat adjustment form



 Backrest adjustment

Air



Air conditioning temperature control method



 ●Manual



"●" - indicates that this configuration is available, "○" - indicates that this configuration is optional, and "-" - indicates that there is no such configuration;



Ruichi EC31 Small Cargo Box Truck Description

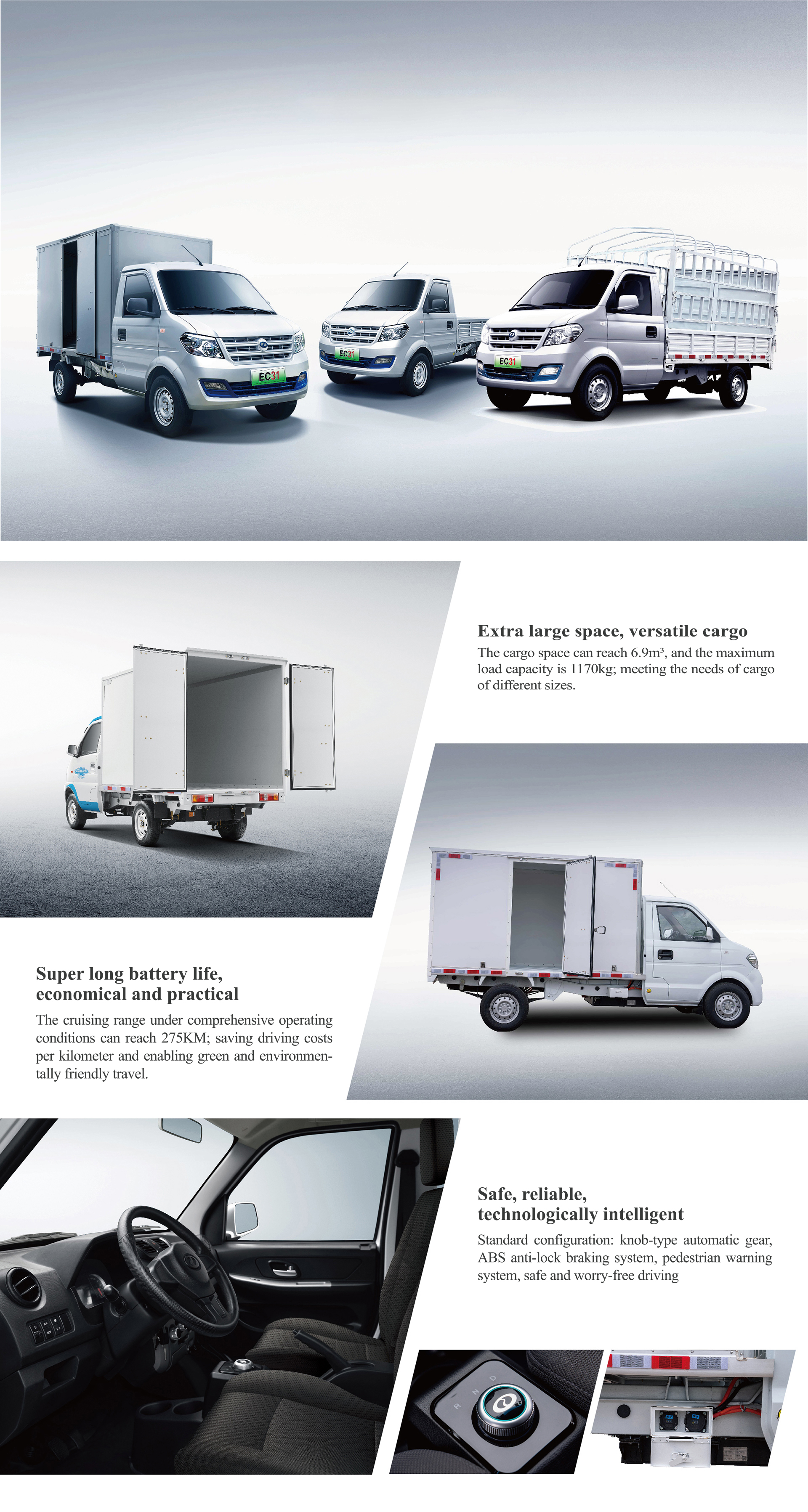

Anout RUICHI EC31: Ruichi EC31 mainly has two models: cargo box and refrigerated truck, AVIC battery, 38.64kWh, 275KM range. 2 seats, 243.67 cubic feet small cargo box truck, the two models have different body and cargo box sizes to meet the transportation needs of different sizes of goods.



DFSK EV Electric Trucks RuiChi EC31 243.67 Cu.Ft. Small Cargo Box Truck 60kw Motor



Photo Gallery



DFSK EV Electric Trucks RuiChi EC31 243.67 Cu.Ft. Small Cargo Box Truck 60kw Motor



DFSK EV Electric Trucks RuiChi EC31 243.67 Cu.Ft. Small Cargo Box Truck 60kw Motor



DFSK EV Electric Trucks RuiChi EC31 243.67 Cu.Ft. Small Cargo Box Truck 60kw Motor



EU Standard Certification



DFSK EV Electric Trucks RuiChi EC31 243.67 Cu.Ft. Small Cargo Box Truck 60kw Motor



Facotry



DFSK EV Electric Trucks RuiChi EC31 243.67 Cu.Ft. Small Cargo Box Truck 60kw Motor

DFSK EV Electric Trucks RuiChi EC31 243.67 Cu.Ft. Small Cargo Box Truck 60kw Motor
