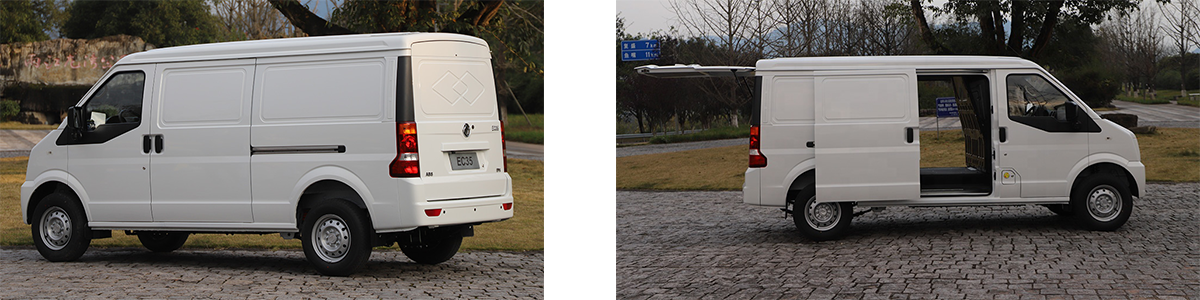

DFSK Electric Minivan EC35 EC36 Mini Van LHD Export Europe Car 4500 X 1680 X 1985mm

Chizhong(Chongqing) lmp.& Exp.Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

DFSK Electric Minivan EC35 EC36 Mini Van LHD Export Europe Car 4500 X 1680 X 1985mm

Brand Name : DFSK

Model Number : DFSK ec35/ec36

Certification : EEC/COC

Place of Origin : Chongqing, China

MOQ : 1 unit

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 70000 units per year

Delivery Time : 10-15 working days

Packaging Details : By Container

Product name : DFSK ec35/ec36

Length × Width × Height (mm) : 4500*1680*1985

Curb weight (kg) : 1510

Gross weight kg : 2600

Max Speed (km/h) : 80/100

Seater : 2/4

Battery capacity (kWh) : 38.7

Wheelbase (mm) : 3050

Tire : 185R14LT 8PR

Contact Now

DFSK Electric Minivan EC35/EC36 Mini Van LHD Export Europe Car

Specification



Item

L1(LHD)



R1(RHD)



Basic



Optional



Basic



Optional



Gotion (Lithium Iron Phosphate)



Gotion (Lithium Iron Phosphate)



Basic Parameter



Length × Width × Height (mm) Box van:4500*1680*1985 Box van:4500*1680*1985

Wheelbase (mm)



3050 3050

Wheel tread (mm)



1435/1435 1435/1435

Curb weight (kg)



1510 1510

Gross weight kg



2600 2600
Acceleration time of 0-50km/h <10S <10S
Acceleration time of 50-80kW/h <15S <15S

Max Speed (km/h)



80 100 80 100

Seating capacity



2 2+2 2 2+2

Electric drive and rear axle



Motor Type Greatland:
TZ210XSR41/Permanent Magnet Synchronous Motor
Greatland:
TZ210XSR41Permanent Magnet Synchronous Motor

Motor Cooling Method



Water cooling Water cooling
Rated Power/Peak Power (KW/rpm) 30/3600—60/9000 30/3600—60/9000
Rated torque / Peak torque(N.m) 80/200 80/200

Drive axle speed ratio



10.5 10.5

Estimated Range [WLTP]



Max. speed 80:268km Max. speed 100:163km Max. speed 80:268km Max. speed 100:163km

Voltage



307.2 307.2

Battery capacity kWh



38.7 standard:With heating and maintenance switch 38.7 standard:With heating and maintenance switch

OBC power



6.6KW 6.6KW

Transmission/Reducer



NA NA

System structure



Body Type



Integral body Integral body

Drive Mode



Rear egine, rear drive Rear egine, rear drive

Front Suspension



MacPherson Independent Suspension MacPherson Independent Suspension

Rear Suspension



Non-independent 5-leaf-spring suspension Non-independent 5-leaf-spring suspension

Brake



Front disc and rear drum, Mechanical Parking Brake Front disc and rear drum, Mechanical Parking Brake

Steering Type



EPS EPS

External Configuration



Tire



185R14LT 8PR 185R14LT 8PR

Tire Rim



Silver steel wheel( optional black steel spare tire ) Silver steel wheel( optional black steel spare tire )
Wheel Cover Steel wheel decoration cover (DFSK logo) Steel wheel decoration cover (SOKON logo) Steel wheel decoration cover (DFSK logo) Steel wheel decoration cover (SOKON logo)

Wheel Nut



Galvanized nuts Galvanized nuts

Front/Rear Bumper



the same color the same color

Grille



same color same color

Front/rear mudguard



IA,without logo IA,without logo
Front combination headlight European standard regulation requirements: automatic headlight lighting function European standard regulation requirements: automatic headlight lighting function

Front fog light



IA IA

Daytime running light



European standard regulation requirements:IA European standard regulation requirements:IA

Side turn signal



White lamp shade and yellow light bulb White lamp shade and yellow light bulb

Wiper



Front wiper( with bone ) Front wiper( with bone )
Exterior Rear view Mirror Standard type, matt black, external manual adjustment Electric Exterior Rearview Mirror Standard type, matt black, external manual adjustment Electric Exterior Rearview Mirror

Sunroof



NA NA

Outer handle



Matt black Matt black
Glass 2 seats:lift glass for front door,panel for middle sliding door/rear side ;glass for back door 2 seats:lift glass for front door,panel for middle sliding door/rear side ;glass for back door
4 seats:lift glass for front door,glass for middle door;glass for back door,panel for rear side 4 seats:lift glass for front door,glass for middle door;glass for back door,panel for rear side



"●" - indicates that this configuration is available, "○" - indicates that this configuration is optional,

and "-" - indicates that there is no such configuration;



DFSK EC35 Feature



DFSK Electric Minivan EC35 EC36 Mini Van LHD Export Europe Car 4500 X 1680 X 1985mm
DFSK EC36 multi function electric ev minivan

DFSK Electric Minivan EC35 EC36 Mini Van LHD Export Europe Car 4500 X 1680 X 1985mm
DFSK EC36 7 passenger electric vehicle 4500 mm length,Wheelbase 3050 mm,flexible seats,can load 1.3 to 5.1 cbm cargo

DFSK Electric Minivan EC35 EC36 Mini Van LHD Export Europe Car 4500 X 1680 X 1985mm
DFSK EC36 Passenger Vans 7/11 Seats 5 Doors

DFSK Electric Minivan EC35 EC36 Mini Van LHD Export Europe Car 4500 X 1680 X 1985mm
DFSK EC36 electric mini van for Fast Charging
Approved for fast charging,90 mins

DFSK Electric Minivan EC35 EC36 Mini Van LHD Export Europe Car 4500 X 1680 X 1985mm
DFSK EC36 electric passenger mini van high performance batter

High efficiency and powerful motor, energy-saving and environmentally friendly lithium-ion battery.
Intelligent battery heating system, 2 hours super fast charging technology.



Gallery



DFSK Electric Minivan EC35 EC36 Mini Van LHD Export Europe Car 4500 X 1680 X 1985mm

DFSK Electric Minivan EC35 EC36 Mini Van LHD Export Europe Car 4500 X 1680 X 1985mm



Certification



DFSK Electric Minivan EC35 EC36 Mini Van LHD Export Europe Car 4500 X 1680 X 1985mm

DFSK Electric Minivan EC35 EC36 Mini Van LHD Export Europe Car 4500 X 1680 X 1985mm



Facotry



DFSK Electric Minivan EC35 EC36 Mini Van LHD Export Europe Car 4500 X 1680 X 1985mm

DFSK Electric Minivan EC35 EC36 Mini Van LHD Export Europe Car 4500 X 1680 X 1985mm
